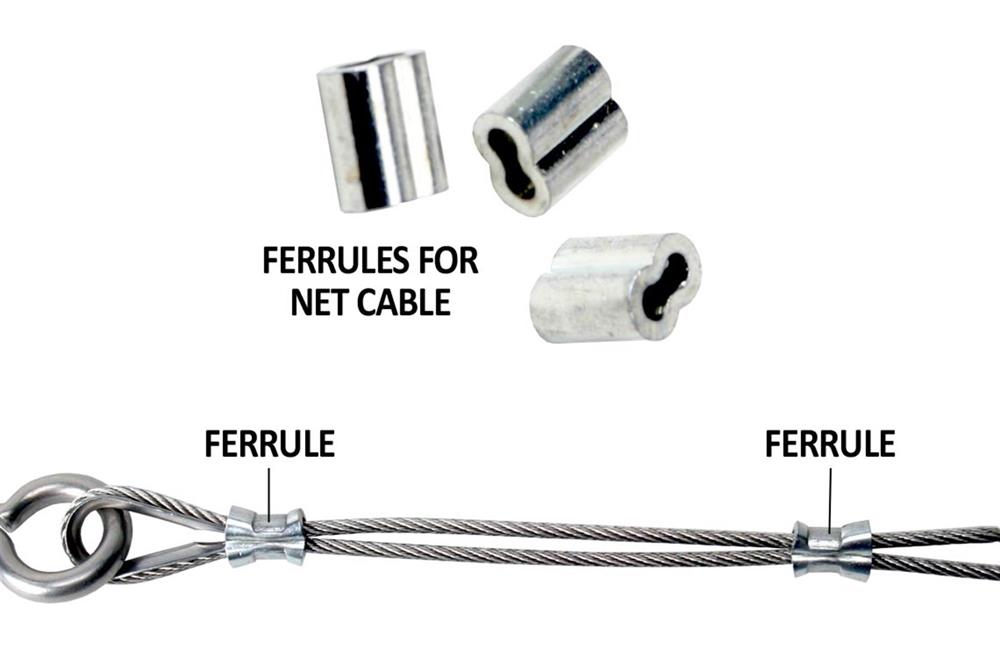

ferrules for net cable ferrules install example
Click an image to see a larger picture.

Ferrules

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Connection Hardware - Hardware used to connect the cable to the corner hardware, turnbuckles and the netting mesh.

Zinc Plated Copper Ferrules for 3/32” diameter Net Cable
  • Zinc over Copper Oval Ferrules (aka Oval Sleeves).
  • For 3/32” (2.4 mm) diameter wire rope. Use for stainless steel and galvanized cables.
  • Ferrules are the crimping component of all loop connections, lap connections, splices and other methods of joining cables together.
  • When properly installed, ferrules will support 40% to 60% of the rated breaking strength of the cable to which they are attached.
  • Must be installed with Nixalite Hand Swaging Tool.
  • Important!! Not for lifting. These light duty ferrules serve to hold the tensioned cables in place but they are not for any type of lifting or suspension of overhead loads.

Available in packages of 100

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Ferrules


Item #:
Price:
Sale Price:
ItemDescriptionPriceQty
FBHSC350 Hand Swager Tool for Ferrules 1/16 FBHSC350 Hand Swager Tool for Ferrules 1/16" to 1/8" $157.00
When and Where to use Stainless Steel Net Cable:
  • Use on 3/32” diameter cable. Can be used on stainless steel and galvanized steel cables. Must be installed with our hand swaging tool. There must be a minimum of 2 Ferrules per connection.
  • Most commonly used with Nixalite’s Tensioned Perimeter Cable Hardware. Can be used with deer and perimeter fencing hardware and an overhead cable grid systems or anywhere a 3/32” cable is used.
  • Use for short runs of cable only. Maximum unbroken run of cable for ferrules is 25 feet (7.62 M).
  • Important!! Not for lifting. These light duty ferrules serve to hold the tensioned cables in place but they are not for any type of lifting or suspension of overhead loads.
Maximum cable length for Ferrule Use:

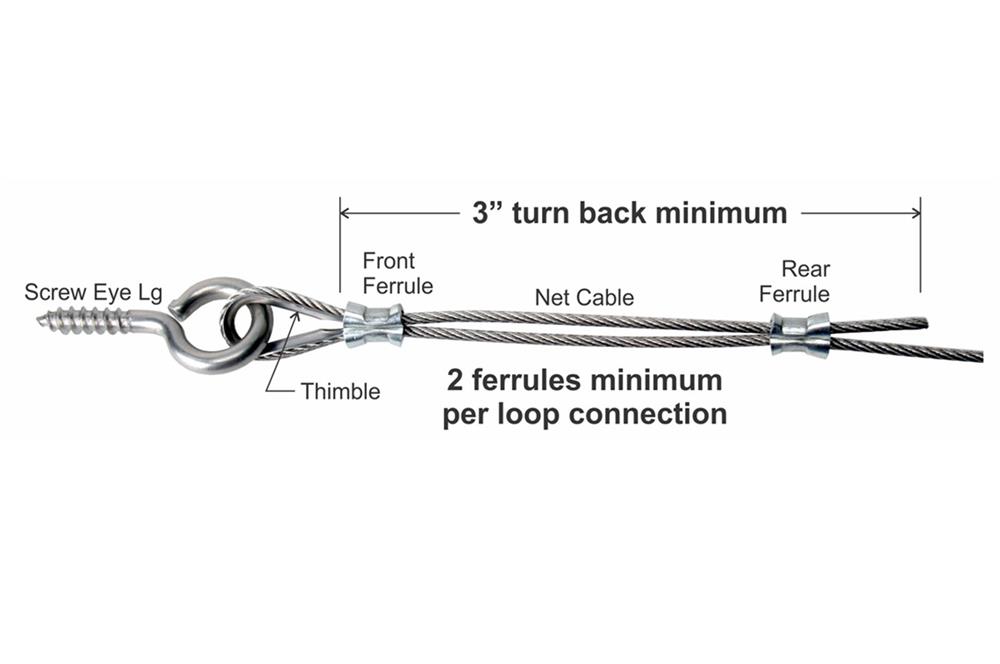

  • Unbroken Cable Run of 25 feet (7.62 M) = 2 Ferrules at each loop connection.
  • If installing cable and netting or fence in high wind areas, use 3 Ferrules at each loop connection.
  • Use of Ferrules on unbroken runs of cable of more than 25 feet (7.62 M) is not recommended.
Ferrule Installation Tips:
  • Always use a minimum of 2 Ferrules for each loop connection. Use 3 Ferrules at each loop connection in high wind or high traffic areas.
  • Remember to slide ferrules onto cable before passing cable through hardware eyelets.
  • Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Connection Hardware - Hardware used to connect the cable to the corner hardware, turnbuckles and the netting mesh.

Zinc Plated Copper Ferrules for 3/32” diameter Net Cable
  • Zinc over Copper Oval Ferrules (aka Oval Sleeves).
  • For 3/32” (2.4 mm) diameter wire rope. Use for stainless steel and galvanized cables.
  • Ferrules are the crimping component of all loop connections, lap connections, splices and other methods of joining cables together.
  • When properly installed, ferrules will support 40% to 60% of the rated breaking strength of the cable to which they are attached.
  • Must be installed with Nixalite Hand Swaging Tool.
  • Important!! Not for lifting. These light duty ferrules serve to hold the tensioned cables in place but they are not for any type of lifting or suspension of overhead loads.

Available in packages of 100

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Related Items

Wire Rope Clamps

Wire Rope Clamps
Required loop connection hardware for cable runs of 25’ or more. Minimum of 2 rope clamps per cable connection.

Wire Rope Thimbles

Wire Rope Thimbles
HD forged steel connection thimbles prevent cable kinks and frays. Available in Stainless and galvanized steel.

Ferrules
Ferrules - 100 $ 25.00 In stock
For connecting short cable runs (less than 25’). Zinc plated copper. Ratchet Crimper required. 2 ferrules per cable connection.

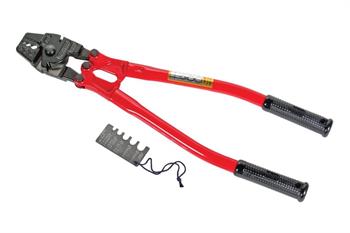

Hand Swager Tool FBHSC350
FBHSC350 $ 157.00 In stock
Heavy duty Hand Swaging Tool for 1/16" to 1/8" ferrules. Includes instructions and swage fitting gages.
