Ease of Installation

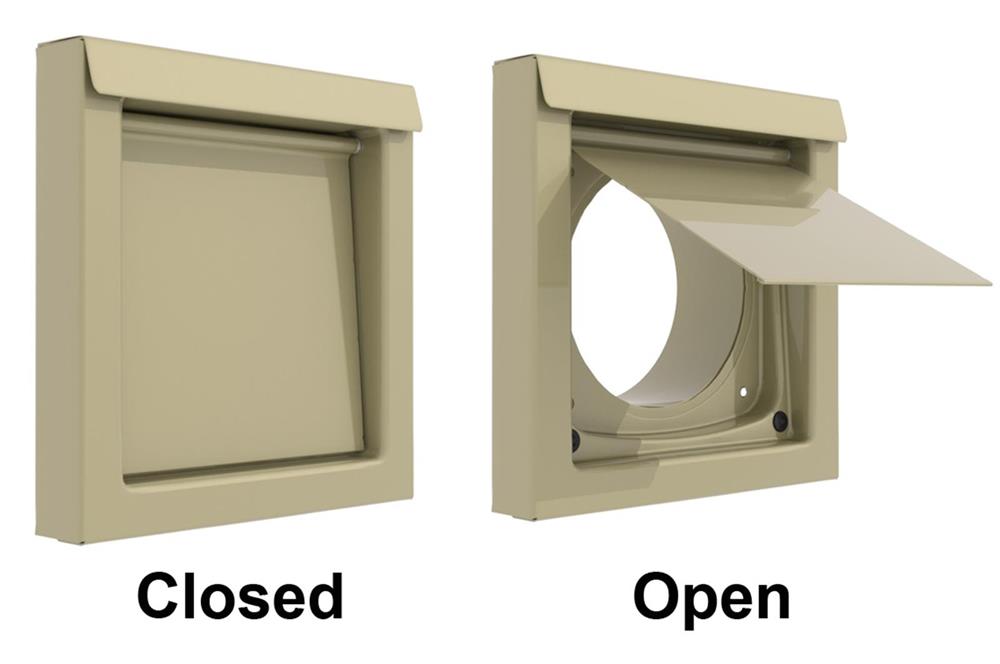

Featuring a slightly reduced collar diameter, Dryer Wall Vents mate easily to any 4" duct work. This means it's as easy to add the new vent to existing construction as it is to include it in new construction. Four built-in holes for fasteners are completely covered by the damper. Installation is simply a matter of slipping the collar into the duct, opening the damper and drilling in a quick four screws. For installations with a larger opening through the wall, the secondary back plate allows for a wider fastener footprint.

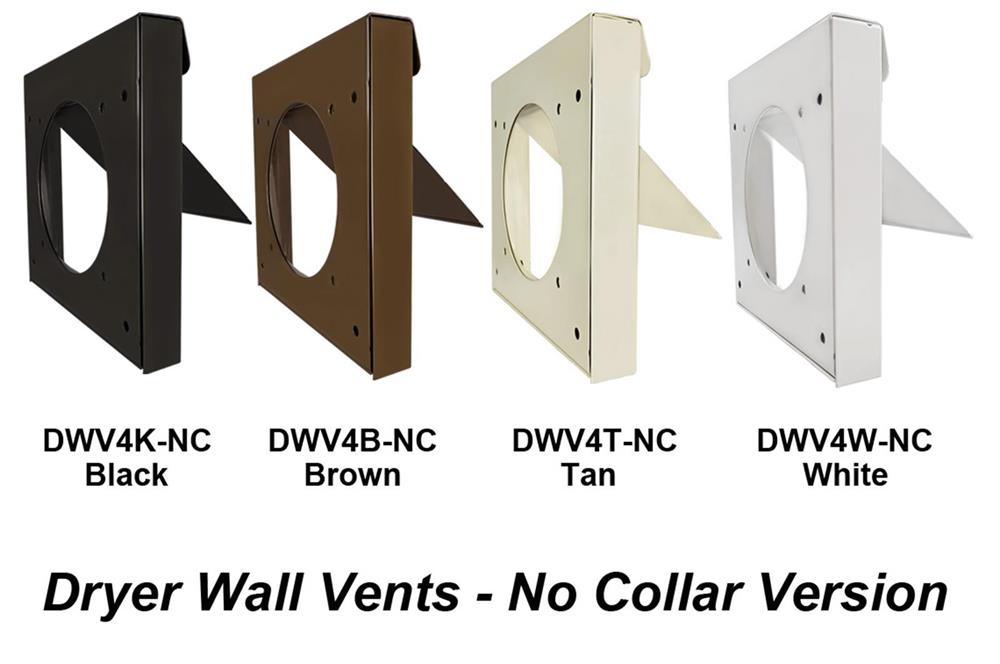

Dryer Wall Vents are Now available in a NO-COLLAR design:
In retrofit scenarios where the standard collar may become an obstacle due to existing structures or limitations, a no-collar vent can be beneficial. The no-collar version is the perfect solution for tough installations.
In retrofit scenarios where the standard collar may become an obstacle due to existing structures or limitations, a No-Collar vent can be beneficial. The No-Collar version is the perfect solution for tough installations. It requires a a bit more care in caulking or sealing but offers the same benefits as the collar version.
You might need a
No-Collar vent when dealing with masonry or thick wall venting applications, or when the standard collar doesn’t fit the specific requirements of the installation space. It’s also useful when you want to maintain the aesthetics with a flush install and ensure the maximum airflow efficiency.
|
Installation Space |
Venting Requirements |
Ease of Installation |
Safety & Code Compliance |
|
If you have a tight space or need a flush mount for aesthetic reasons, a No-Collar vent might be more suitable. |

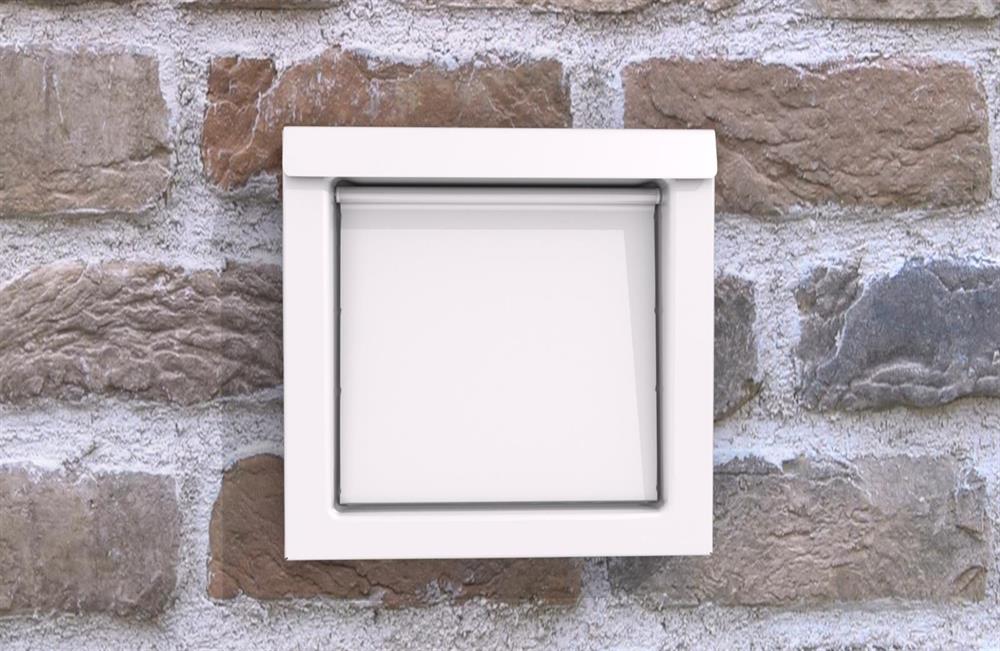

For Masonry or thicker walls, a No-Collar vent can provide a better fit. |
Collar vents are generally easier to install, especially in new construction as they quickly connect to the ductwork. |
Ensure that the vent you choose complies with local building codes. Rigid metal vents are often recommended for their safety and efficiency. |
Ultimately, the best choice will align with your specific installation requirements, safety standards and local building codes.

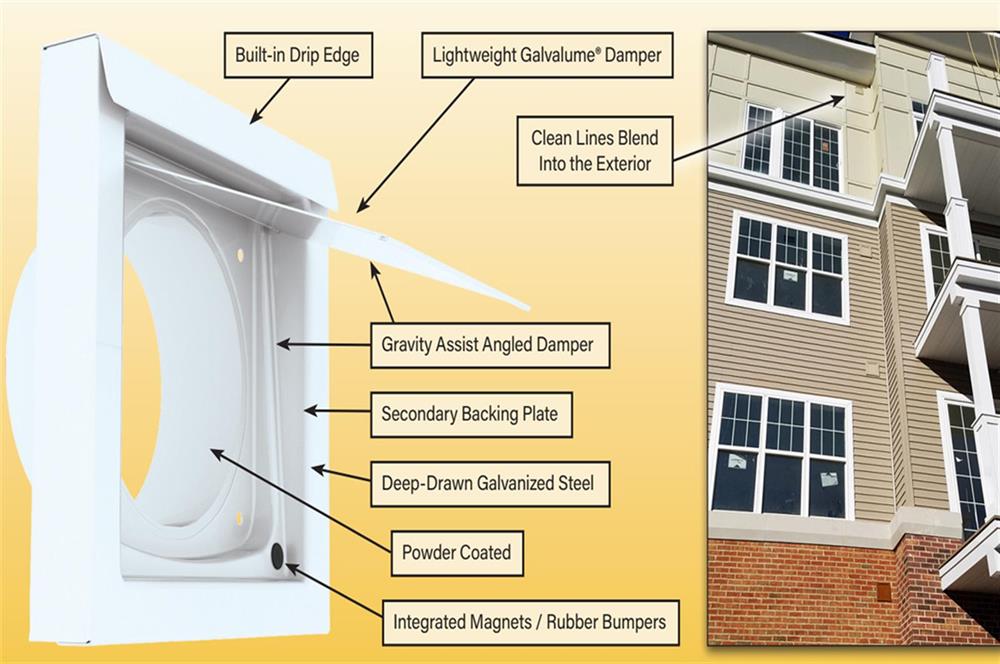

The low profile DryerWallVent® is a superior, safer choice for venting dryer exhaust to the exterior. Engineered for a quick, perfect fit for both vent replacement and new construction, this stylish and durable enclosure meets or exceeds all code requirements for safe dryer venting. Heavy gauge Galvalume® steel body with powder coating ensures a long duty life. Clean lines make a nice aesthetic contribution to every home.
The dryer's exterior termination has often been treated as an afterthought. Many vents are constructed of plastics which deteriorate over time. Some vents are built with light weight metal, extruding far from the wall, which makes them prone to damage. Dryer Wall Vents are built to last! Durable powder coated colors on heavy duty 26 gauge Galvalume steel.
Dryer Wall Vents are Now available in a NO-COLLAR design:
In retrofit scenarios where the standard collar may become an obstacle due to existing structures or limitations, a no-collar vent can be beneficial. The no-collar version is the perfect solution for tough installations.
See the tab below for more information. Sold in cases of 16 / Call to order
Complies w/ IMC 504.4 & IRC 1502.3

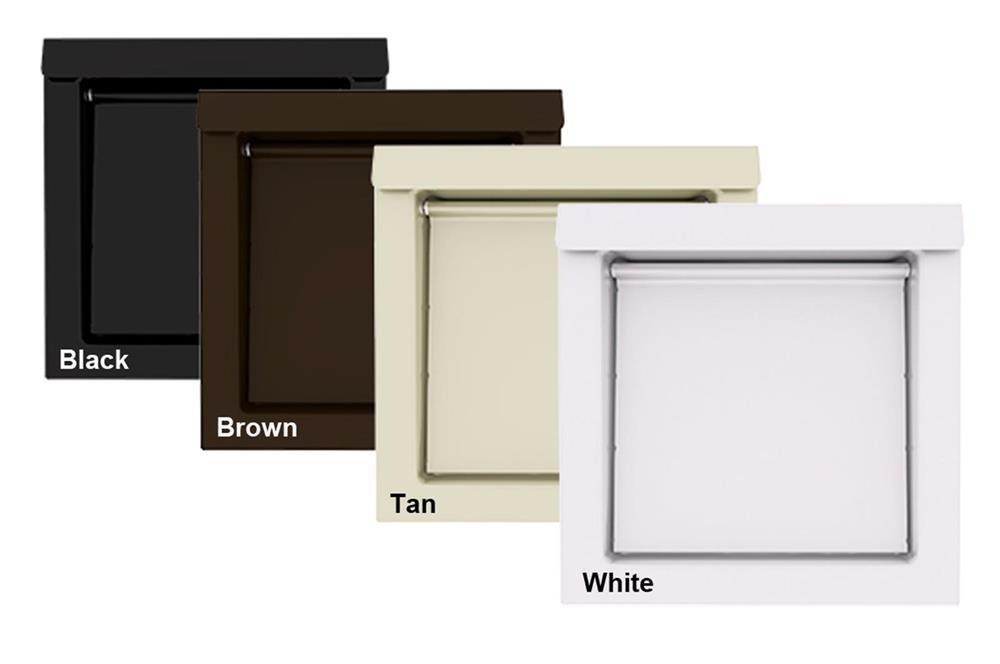

Stock Colors: White, Brown, Black and Tan
