C-Ring Tool - Premium Pneumatic Plier

Netting Accessories and Tools

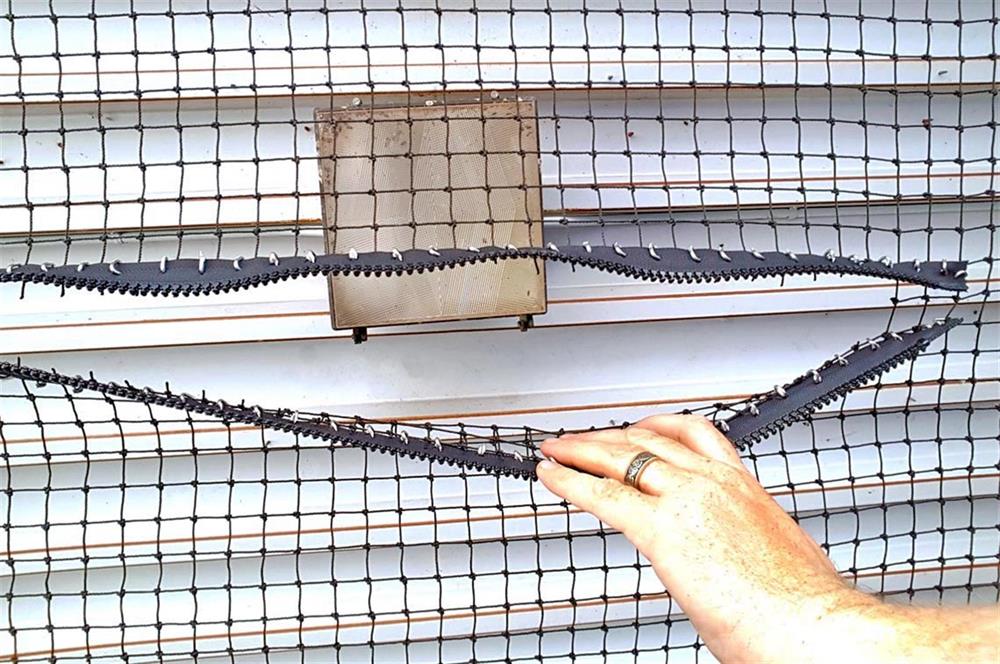

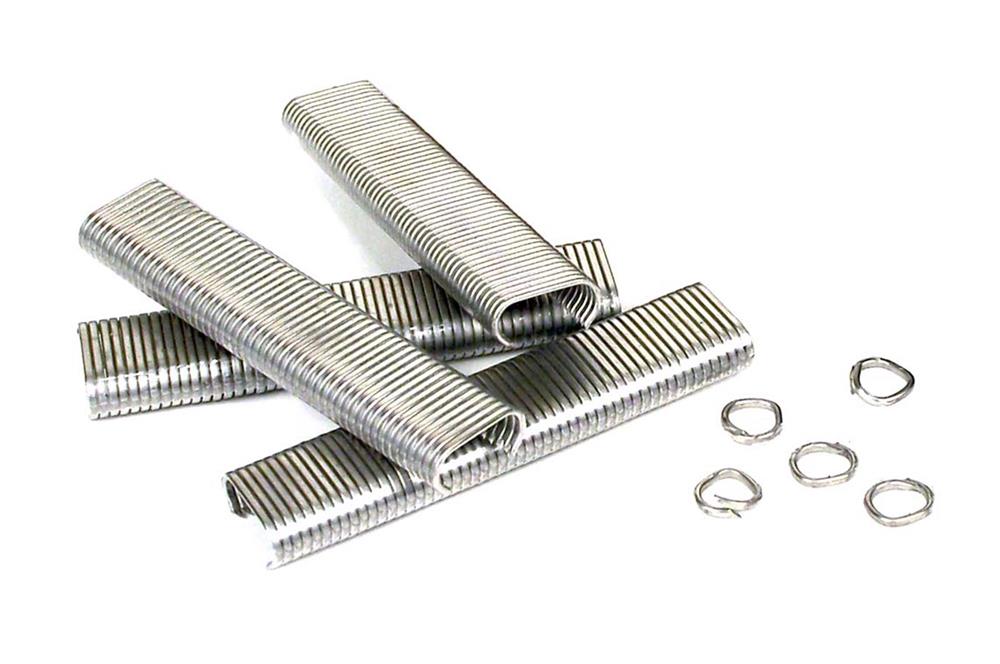

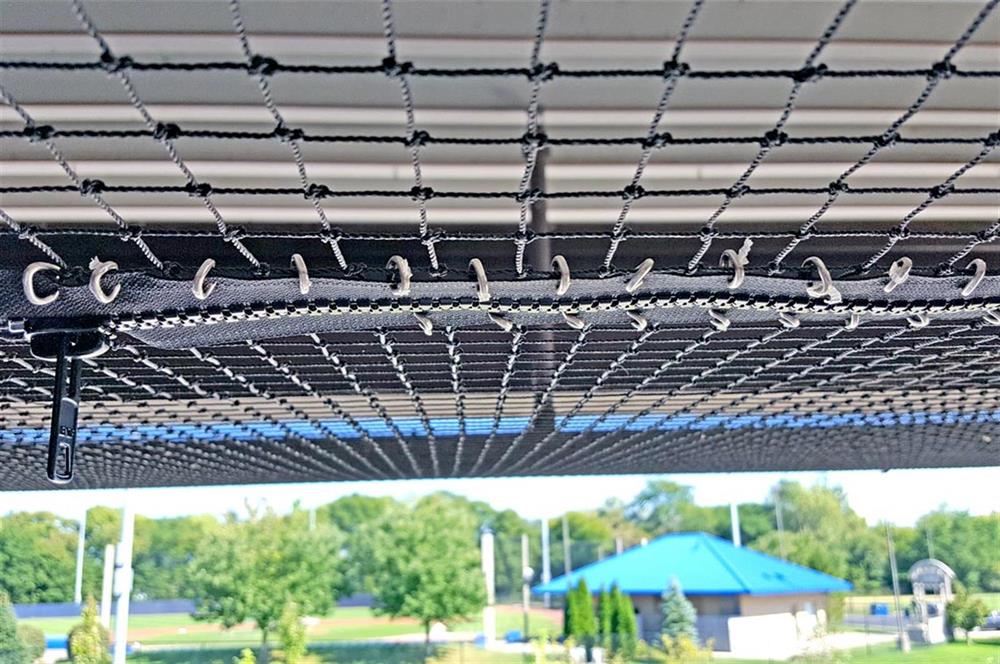

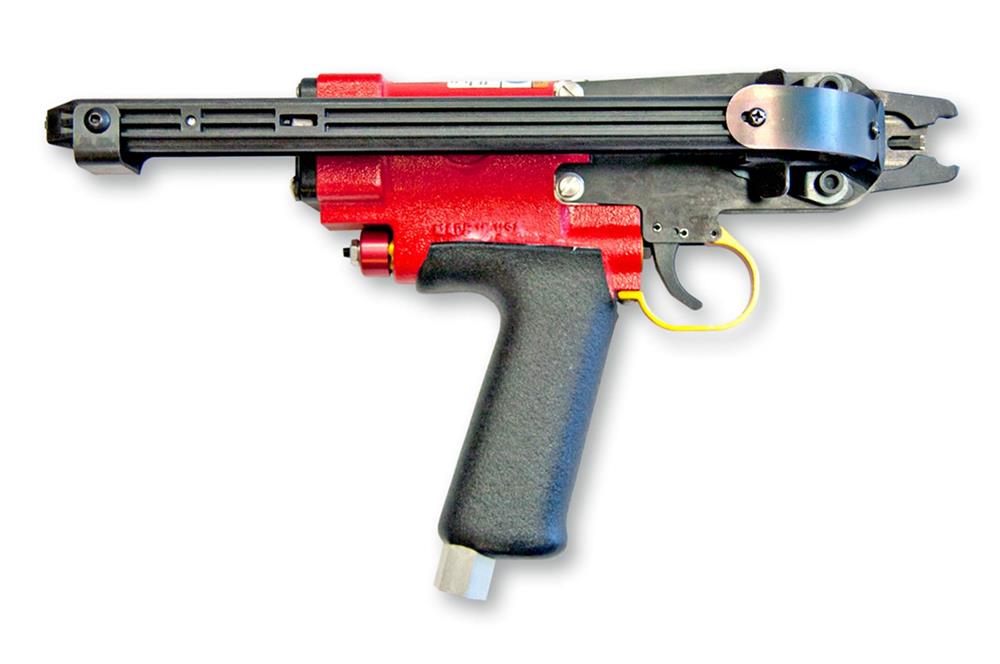

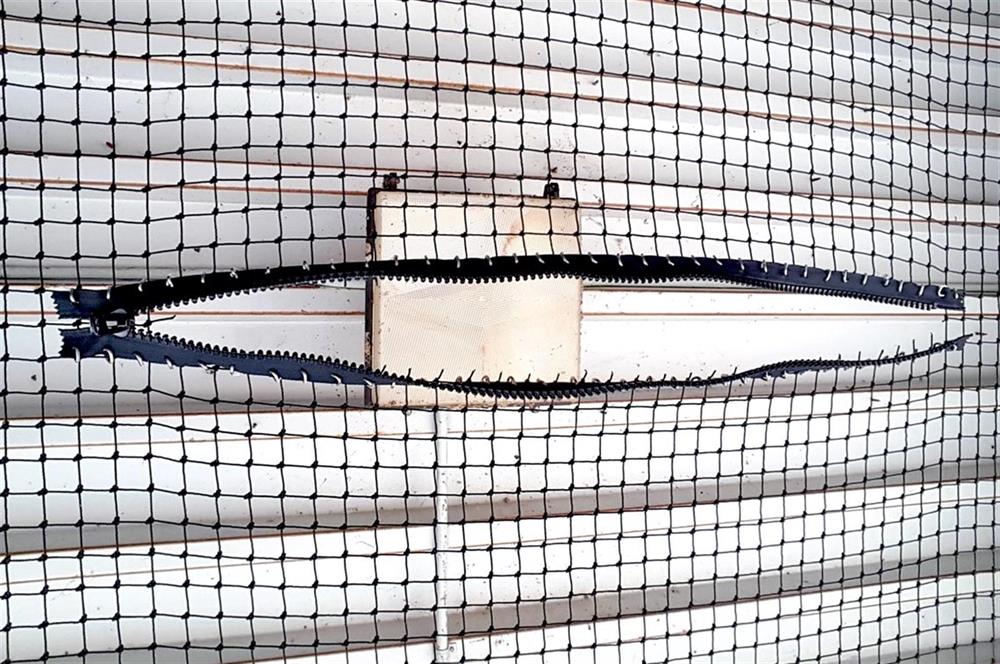

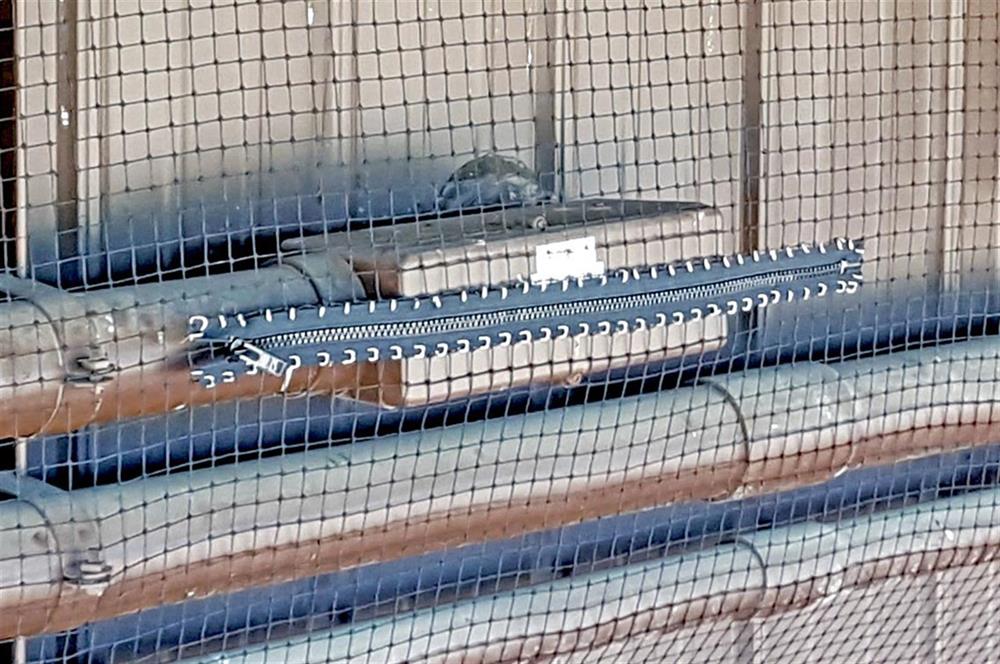

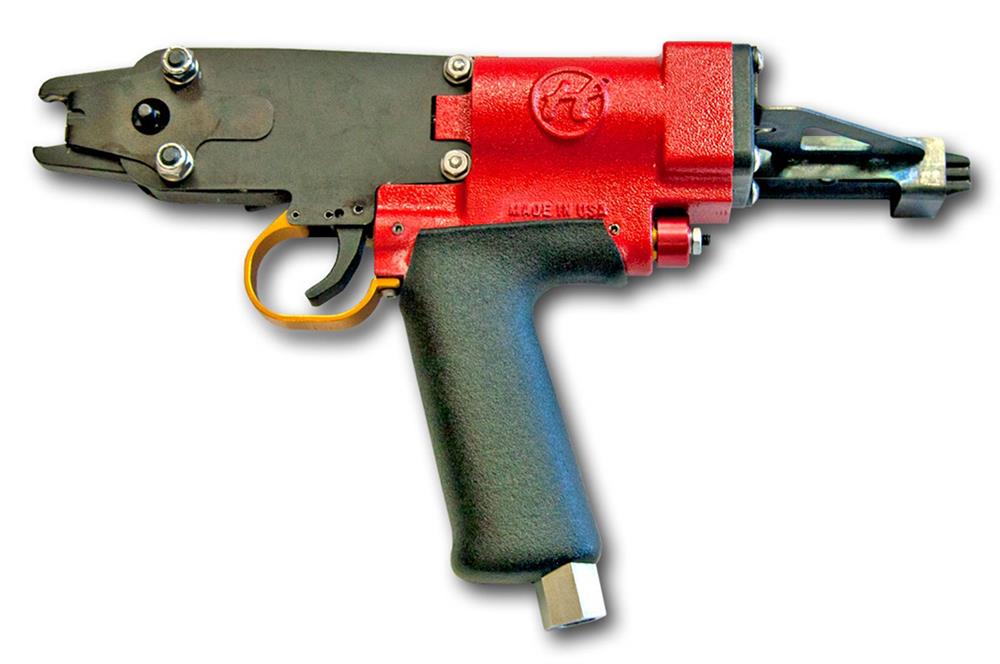

The HC716 C-Ring Tool is a premium pneumatic plier designed for fast, efficient installation of stainless steel C-rings. Perfect for mesh netting, cable attachments, bird control, and small hardware projects, it accepts 16-gage 3/4″ stainless C-rings and features a rear-loading magazine with a capacity of 110 rings.

HC716 Pneumatic C-Ring Tool Specifications:

Dimensions: 12-3/4" long X 8-5/8" high X 3-5/8" wide
(32.3cm long X 22cm high X 9.3cm wide)
Weight: 3.0 pounds / 1.3kg
Magazine type: rear loading
Staple type: C style, 3/4"
Magazine capacity: 110 rings (1 strip)
Operating pressure: 95 psi (0.6 Nmm2)
Max. operating pressure: 100 psi (0.69 Nmm2)
Air consumption/cycle: 3.2 cubic inch (0.08 cubic meter)
Inner air hose diameter required: 3/8" (9.5mm)
Sound at gun: 82dB
Made in the USA

What's in the box? C-Ring Tool, operator's manual, spare parts list, service instructions.

Important! Use the C-Rings designed for this C-Ring Tool. Both the tool and the rings are from the same manufacturer and are designed to work reliably together. Off-brand rings may have too much or too little adhesive holding the ring sleeves together, which can cause feeding issues, jams, or premature tool failure. Using the recommended rings ensures consistent performance and extends the life of your C-Ring tool.
