IGEBA®

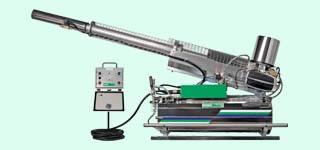

TF-95 HD Thermal Fogger
The IGEBA TF-95 HD is engineered
from the beginning to be the most efficient and economical truck or
skid mounted pulse-jet thermal fogger. It can fog medium to large
areas, indoors and outdoors quickly and economically. The TF-95 HD
can apply both oil and water based solutions by swapping the
standard fog tube for the optional water fog tube kit.
Order Your IGEBA TF-95 HD
Now
Download IGEBA TF-95 HD Product Brochure Now (PDF)
IGEBA TF-95 HD Specifications
IGEBA TF-95 HD Applications
IGEBA® - The
Global Standard for Excellence and Quality in Thermal Fogging
IGEBA TF-95 HD Features
- 5.5 Liter stainless steel fuel tank and
60 Liter formulation tank.
- 4140 stainless steel expansion chamber
& tube.
- TF-95 and 160 models come with an
auto-shut off device for safety.
- All other parts contacting solution are made
of brass or Teflon.
- TF-95 is available with remote
operating and start/stop controls.
- Raise and lower the Fog Tube
level with simple hand cranks.
- One of the quietest platform mounted pulse
jet thermal fogger.
- Designed from the beginning to be a platform
mounted fogger - not a kit or adaptation.
- Optional "W" Fog Tube makes it water
based solution compatible.
- Global ISO 9001 Certificate awarded to
all IGEBA foggers.
- Absolutely reliable ignition uses 4
"D" cell batteries - no spark plugs.
- Convenient stainless steel drain at the
bottom of solution tank.
- Comes with: operators manual (book and
CD), maintenance kit, 3 dosage nozzles, and more.
Additional TF-95 Options
Model TF-F95 HD comes with 12 volt in-cab, remote
operation controls.
Optional rotary table available for all platform mounted foggers.
Optional pressure gages for both solution and fuel tanks.
Additional "W" Fog Tube allows the use of water based
formulations.
Order Your IGEBA TF-95
Here
IGEBA TF-95 Specifications
- Weight Empty (lbs/kg): 87 / 39,5
- Dimensions Inches:
78 x 23.5 x 24.5
- Dimensions Cm: 198 x 60 x 62
- Solution Tank Capacity: 15.8 G /
60 L
- Fuel Tank Capacity: 1.4 G / 5,5 L
- Fuel Requirements: Unleaded
Gasoline
- Fuel Consumption: 1.05 G hr / 4
L hr
- Max Flow Rate (Oil Base): 26.5 G hr /
100 L hr
- Ignition Batteries: 4 "D"
batteries.
Use The TF-95 Models For:
- Mosquito, gnat, fly and other flying insect
control.
- Disease control through insect, bacterial and
fungal control.
- Combat Malaria, dengue/yellow fever and more.
- Disinfecting of large areas, surfaces and objects.
- Disinfection or treatment of poultry and
livestock
containment.
- Mold & mildew control in commercial and
residential applications.
- Hydration and pest control for greenhouses, plant nurseries,
gardens, etc
- Special effects for the film & entertainment
industry.
- Training tool for military or law
enforcement.
- Applies oil base solutions with standard fog
tube (included).
- Applies water based solutions with optional "W"
tube.
NOTE: DO NOT USE
STERI-FAB IN THIS FOGGER. Download a
IGEBA TF-95 HD brochure.
(PDF)
